High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module

  • High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module
  • High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module
  • High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module
  • High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module
Place of Origin Shen Zhen China
Nazwa handlowa AVOE LED
Orzecznictwo CE RoHS
Model Number AV-P6
Minimum Order Quantity 5sqm
Cena negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Name Fixed Full Color LED Display Pixel Pitch 6mm-20mm
Grey Scale 16.7M Pixel Compose 1R1G1B
LED assembly type SMD2727/3535 Brightness 6500cd/㎡
Control System Synchronized with PC Gray Scale 16bit
IP Rating IP65 Input Voltage AC100-240V
Lifespan 100,000 hours Power Consumption 500W/㎡
Refresh Rate 3840Hz Viewing Angle 140°/140°
Warranty 3 years
Podkreślić

P6mm Outdoor Fixed LED Display

,

192*192mm Outdoor Fixed LED Display

,

High Brightness Outdoor Fixed LED Display
Zostaw wiadomość
opis produktu

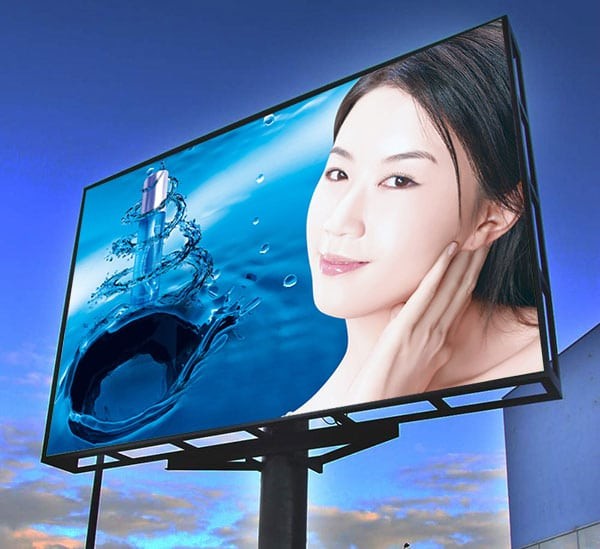

High Brightness P6mm Outdoor Fixed LED Display with 192*192mm Module

Specification of P6 Outdoor Fixed LED Display


Specification of P6 Outdoor Fixed LED Display

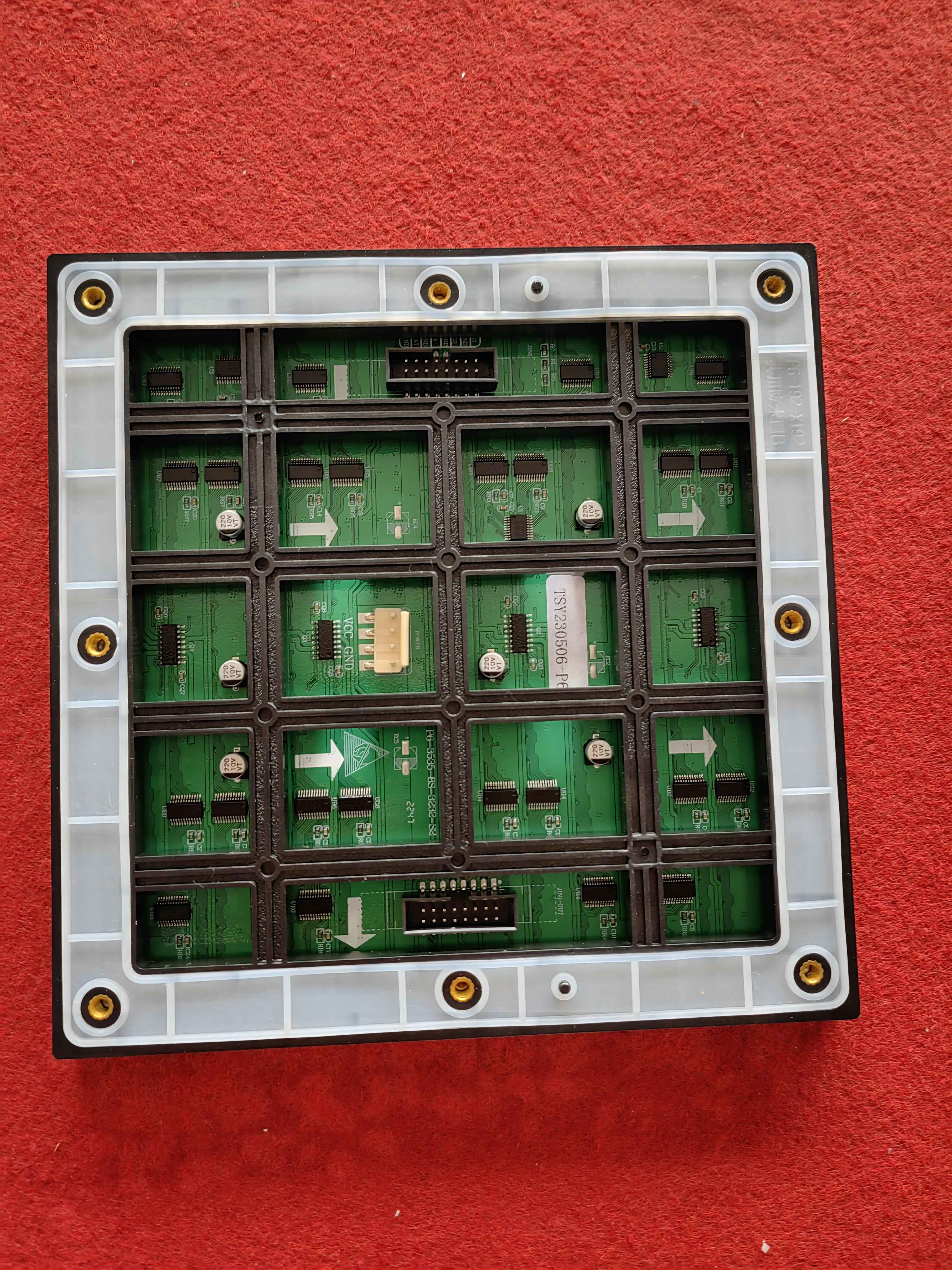

Module
Dimention (w*h) 192x192mm Resolution (w x h) 32x32
Pixel pitch 6mm Pixel Density 27777 dots/㎡
Pixel Configration RGB 3-in-1 LEDs Type SMD3535

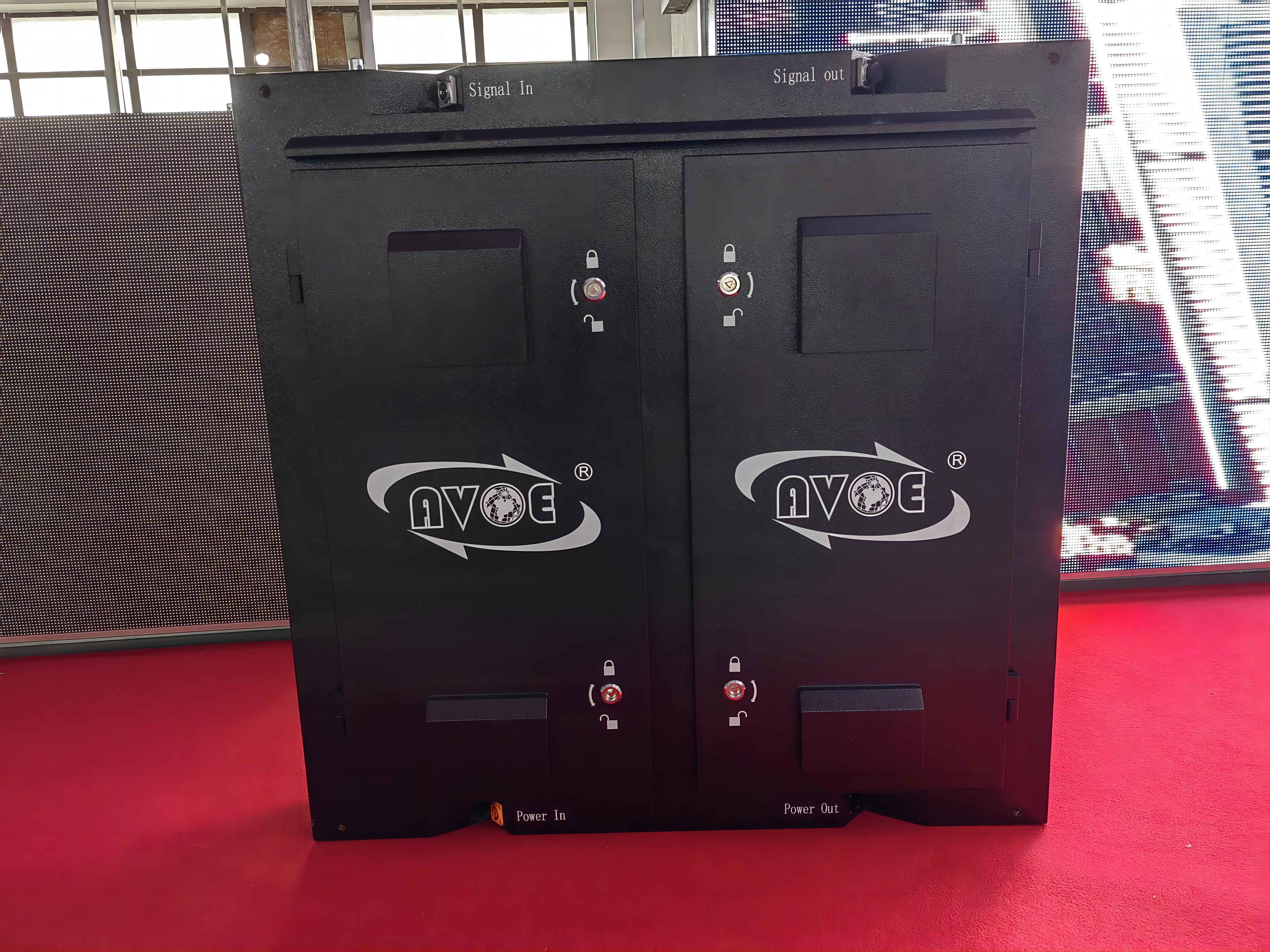

Cabinet
Dimensions(w* h)(mm) 960*960mm Module Quantity(PCS) 25
Physical Resolution (w x h) 160*160 Physical Pixels (total) 25600
Weight/Cabinet (kg) 40 Material steel
Average Power/㎡(watts) 300W Max Power/㎡(watts) 800W
Parameter Value
Brightness ≥ 6000 cd/㎡
Viewing Angle Horizontal 140(+70/-70) deg. Vertical 140(+70/-70)deg.
Best Viewing Distance 6-250meters
Brightness Control 256 level
Gray scale 14bits
Refresh frequency ≥ 1920Hz
Driving mode 1/8 scan constant current driving
Input power frequency 50 or 60 Hertz
Input Voltage 110 ～ 240 Volt
Blind spot rate ＜1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP65/IP54
Operating temperature ﹣20 ～﹢50 ℃
Operating humidity 10％ ～ 90％
Control distance CAT6 cable:＜100 m; Single mode fiber:＜10 km
Signal input format AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating system Windows (2007/XP/Vista/7/8/10)



High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module 0High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module 1High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module 2



High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module 3High Brightness P6mm Outdoor Fixed LED Display With 192*192mm Module 4
Features:
1) Reliable quality, advanced and mature technology, compliant with industrialstandards and technology developing trend
2) Better viewing effect
3) The effect of heat emission is good, and the performance is stable
4) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal
5) High resolution and definition of screen image, clear and non-flash screen image
6) Supports video and radio frequency input, special structure can be freely assembled
7) Low cost of operation
8) Short leading time
9) Easy maintenance
10) Widely used in stadium, bank, restaurant, train and bus station, shopping center,government, schools, entertainment, enterprise, wharfs, airports, emporiums, hospitals, hotels, stock exchanges, construction markets, auction houses, corporate management and other public places,advertising, leasing biz,
large scale sports stadiums, waiting room of railway station, live TV programs, exhibition facilities, artistic centers, entertainment locations, large scale artistic ceremonies, live concerts etc

Note:
Indoor LED Display design for indoor video advertising use, the important feature for this products is it can be view with very nearly distance even only 1 meter, and it must be very big view angle up to 140 , so all of our indoor LED display screen are use SMD 3 in 1 of LED for each pixels, the view angle was over 160 both of vertical and horizontal, and the color was mixed due to 3 LED chip into 1 SMD LED.
For controller system, we use advantage design for video graphic scan, there's big output digital signal to show real color. We provide after-service all over the world such as technology support, installation testing and so on.
