1R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging

Place of Origin Shen Zhen China
Nazwa handlowa AVOE LED
Orzecznictwo CE RoHS
Model Number P3.91-7.82
Minimum Order Quantity 5sqm
Cena negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Name Transparent LED Display Installation Hanging or Stacking
Tube chip color Full Color,RGB Display function Video,Animation,Graphics,Animation/ graphics/ video,Video/Image
Usage Indoor,Outdoor Pixels 3.91-7.81mm
Brightness ≥5000nits Warranty 3 Years
Application Live Events Led Display,advertising,indoor and outdoor building/stage led display,Outdoor Advertising Led Life span 100000hours
Color 1R1G1B,Color RGB curtain display Cabinet size 500x1000mm or 1000x1000mm
Viewing angle 140 degree /140 degree Refresh rate 1920Hz
Podkreślić

3.91mm Pixels Transparent Led Screen

,

1R1G1B Transparent Led Screen

,

5000nits Transparent Glass Led Screen

Zostaw wiadomość
opis produktu

1R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging



1. Good visualization

Glassbased design allows the light to pass through the glass without any influence to the building

structure around.Transparency of the glass screen can up to 80%.



2. Ultra-thin, and ultra-light.

Thickness 35mm and 10 kg per sqm.

High brightness, and high definition.

The brightness is over 5500 nits/m2.



3. Easy and convenient maintenance.

Repairing single SMD without taking of single module or entire panel.



4. table and Reliable

Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.



5. Wide use range.

Wherever the glass wall is, glass LED display can be installed. Such as bank, supermarket, theater,

business street, elevator, hotel and coffee house, etc.



6. High transparency.

High transparency with 60%~80% for front and back. Perfect cabinet design for special application.





7. Delicate structure

The cabinet is designed with delicate structure and the the cabinet is ultra thin, ultra light and strong. the tickness is only 40mm thickness.



8. Fast lock design,easy installation.

With fast lock design, allows for easy assembly and disassembly. It is very easy for cabinet connection in just a few seconds.



Parameters

Model P3.91 P3.91 P7.81 P7.81 P10.4
Pixel pitch 3.91-7.81 3.91-7.82 7.81 7.81-15.625 10.4
Lamp Indoor SMD2121 Outdoor SMD1921 Outdoor SMD2525 Outdoor SMD2525 Outdoor SMD2525
Pixel density 32768 32768 16384 8192 9230
Module size 500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size available
Cabinet material Acryic Aluminum Steel
weight 15KG/㎡ 15KG/㎡ 14KG/㎡ 14KG/㎡ 14KG/㎡
Transparency 65% 65% 70% 75% 80%
Brightness ≥1000nit ≥4500nit ≥4500nit ≥4500nit ≥4000nit
Refresh rate ≥1920HZ
Scan mode 1/165 1/85 1/25 1/25 1/35
Max power consumption 400W/㎡ 600W/㎡ 600W/㎡ 550W/㎡ 550W/㎡
Average power 120W/㎡ 180W/㎡ 180W/㎡ 180W/㎡ 180W/㎡
PCB FR-4 four layers board,2.0mm thickness
Driver IC MBI5124,Hight Refresh Rate
Installation Hanging or Stacking
Brightness level 256 Level







Application

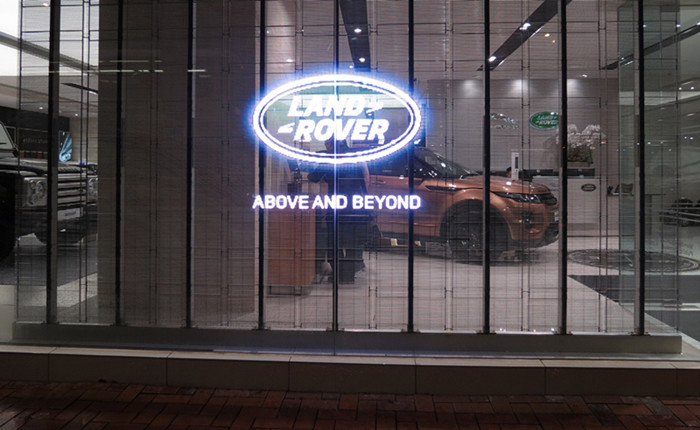

AVOE Transparent Glass Curtain Wall LED Display for building glass wall, Auto 4S shop,
high-end clothing stores, retail windows, stage rental, et



Detailed Pictures

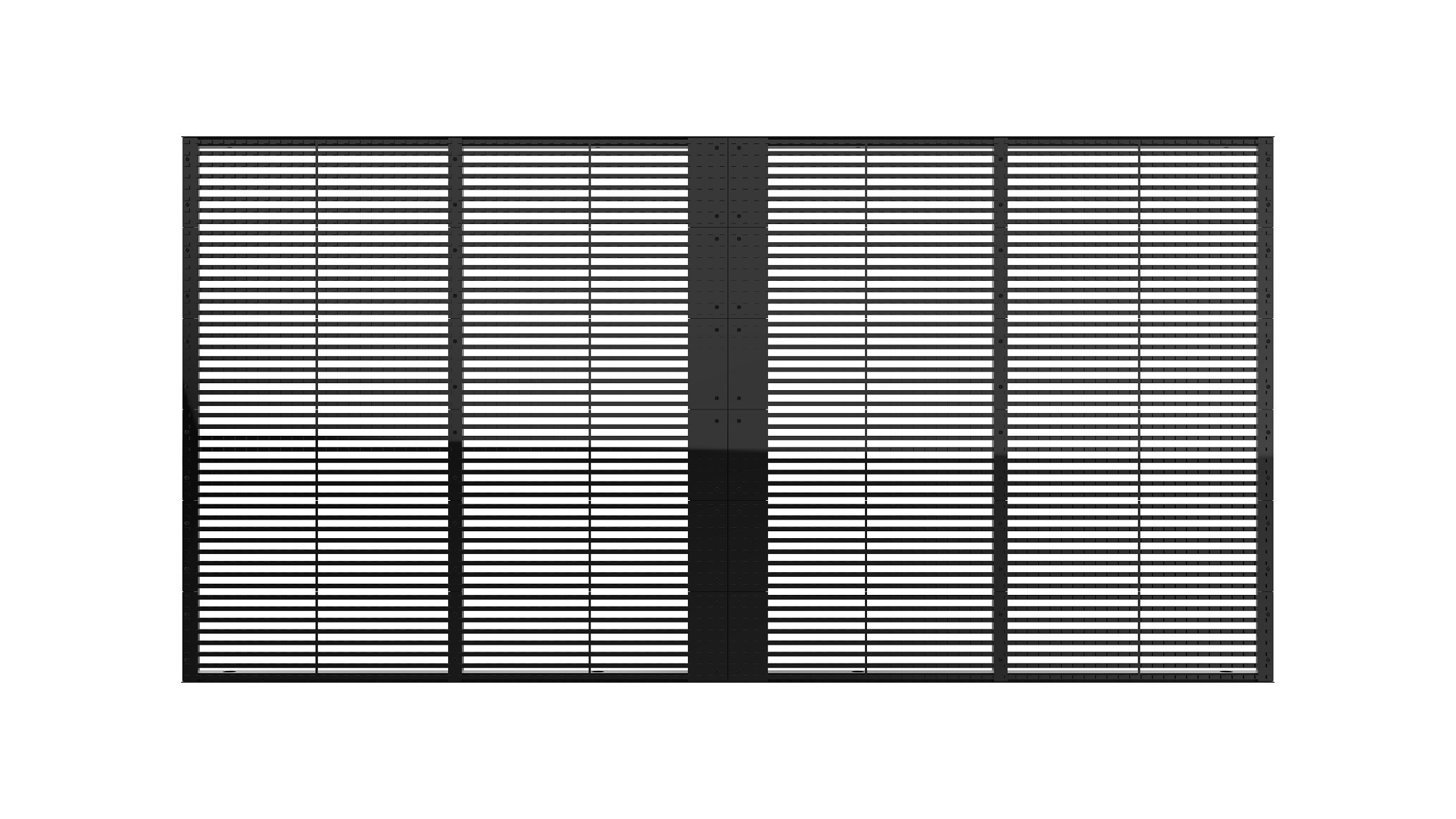

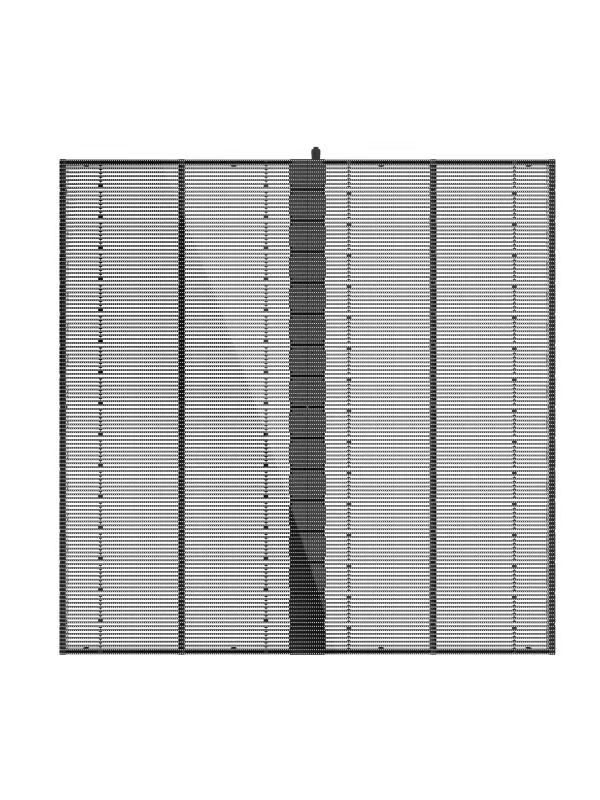

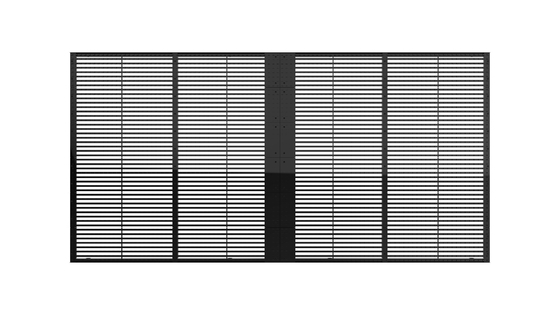

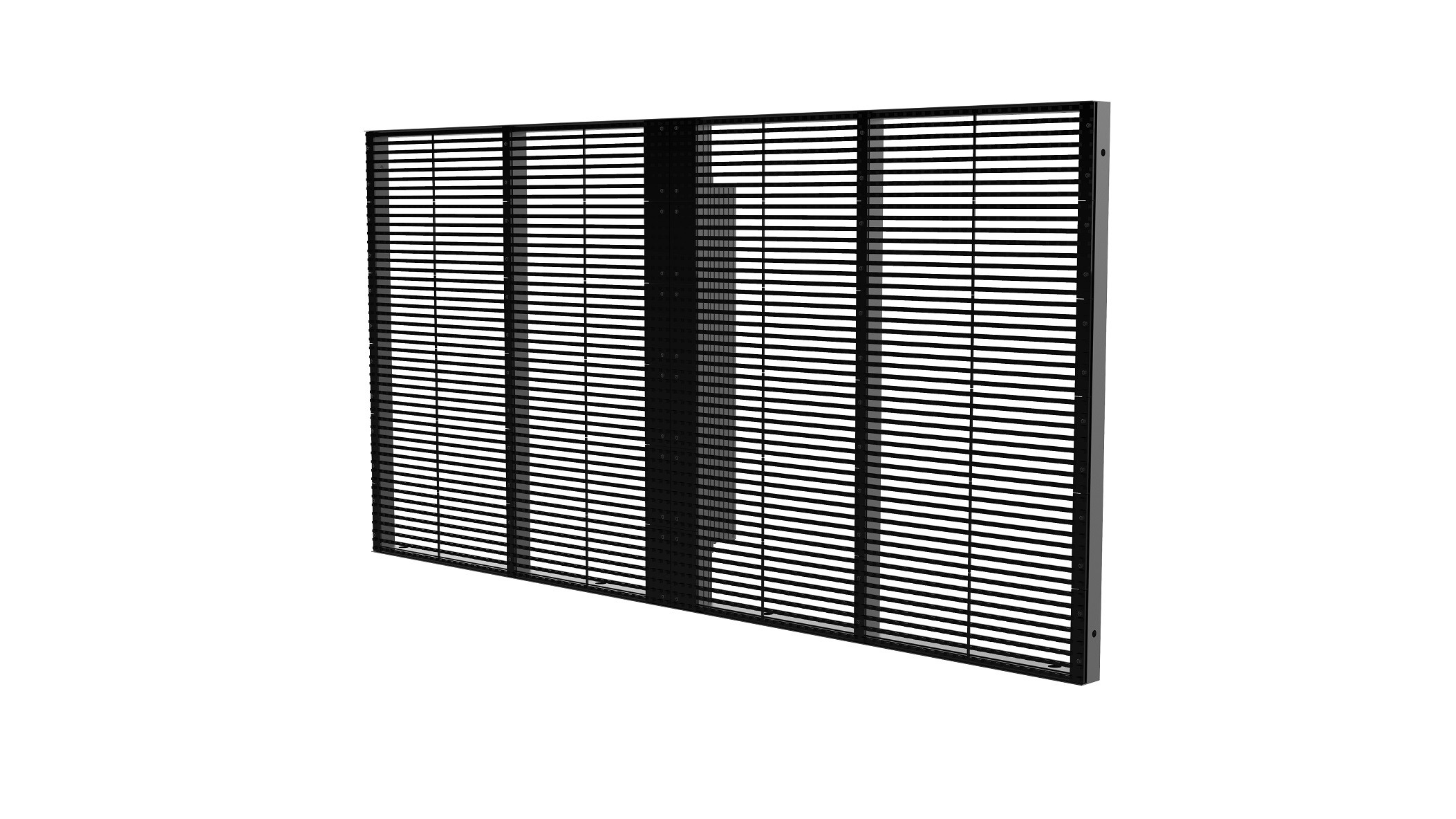

1R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging 01R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging 11R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging 21R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging 31R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging 4



1R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging 5

1R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging 6

1R1G1B transparent led curtain display Transparent Led Screen 5000nits Hanging 7
