8000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B

Place of Origin Shen Zhen China
Nazwa handlowa AVOE LED
Orzecznictwo CE RoHS
Model Number AE-P15-31
Minimum Order Quantity 5sqm
Cena negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Name LED Mesh Curtain Pixel pitch P15-31
Pixel configuration 1R1G1B Panel material Aluminum
Tube chip color Full Color Screen dimension Customized
Usage Outdoor Display function Video,Animation,Txt,Video Multi-media,Graphics
Brightness More than 6500cd/sqm Life span 100000hours
Warranty 3~5 Years Module size 500mm x 1000mm
Product name Sunrise transparent bar type led display Led chip Epistar
Color full color,RGB,1R1G1B,Full-color Application Outdoor Advertising Led,building media decoration
Refresh rate 1920Hz Power supply Meanwell
Podkreślić

8000nits LED Mesh Curtain Display

,

P15 LED Mesh Curtain Display

,

1R1G1B Led Curtain Backdrop

Zostaw wiadomość
opis produktu

P15-31 Outdoor AVOE LED Mesh Curtain Display waterproof IP67 Brightness 8000nits

♦ Advantage :

1 . Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
2 . Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;
3 . Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
4 . Good color blending: Display clear, exquisite, nature color video even at close distance;
5 . Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures and video
6. LED display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on.


DIP series P15-31D
Pixel pitchHorizontal 31.25mm - Vertical 15.625mm
Unit cabinet size(W) 500mm x (H) 1000mm x(T) 67mm
Unit cabinet weight7.5 kg/unit
Cabinet weight15 kg/m²
Max consumption350 w/m²
ItemUnitParameter
Type of product 15-31D
Pixel pitchmmHorizontal 31.25 Vertical 15.625
Pixel compositionDIP346 (1R1G1B)
Resolutiondot/㎡2048
Unit cabinet sizemm500(W) X 1000(H)
Unit cabinet pixelsdot1024
Unit cabinet resolutiondot16(W) X 64(H)
Unit cabinet weightkg/unit7.5
Cabinet weightkg/㎡15
Unit cabinet thicknesscm6.7
Installation thicknesscm12.7 (including the frame thickness 6cm)
Max consumptionW/㎡450
Average consumptionW/㎡135
Screen brightnessCD/㎡≥8500cd
Gray leverbit14
Color temperatureK6500-9300k
Brightness adjustmentdegree0-255
View angle°Horizontal ≥110° vertical ≥70°
The best view distancem25-500
Frame ratesHz60
Control mode Synchronous mapping / Asynchronous control
Drive mode Constant current,static
Power source voltageAC/ V85-250
Life span 100000 hours
Cooling mode structure-enhanced,natural convection
Strip widthmm9.8
Strip material aluminum 6061
Transparent rate%70%
IP rateIPDouble-side IP67
Operating / Storage Temperature°C-35 ~ + 80°C / -55 ~ + 120°C
Installation Frame material 2.0mm cold-rolled galvanized steel sheet
Installation type quick installation Tool-free
Fire resistance Full V0 flame retardant
Maintain speed 10S / unit
Maintain mode Front side and Back side

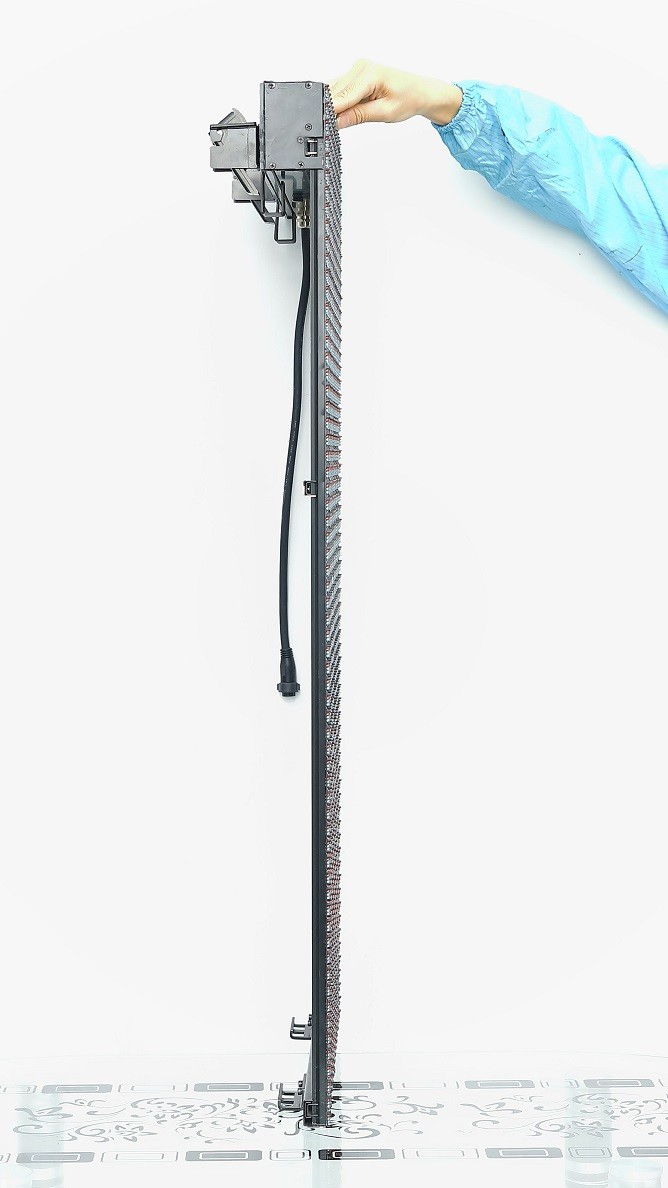

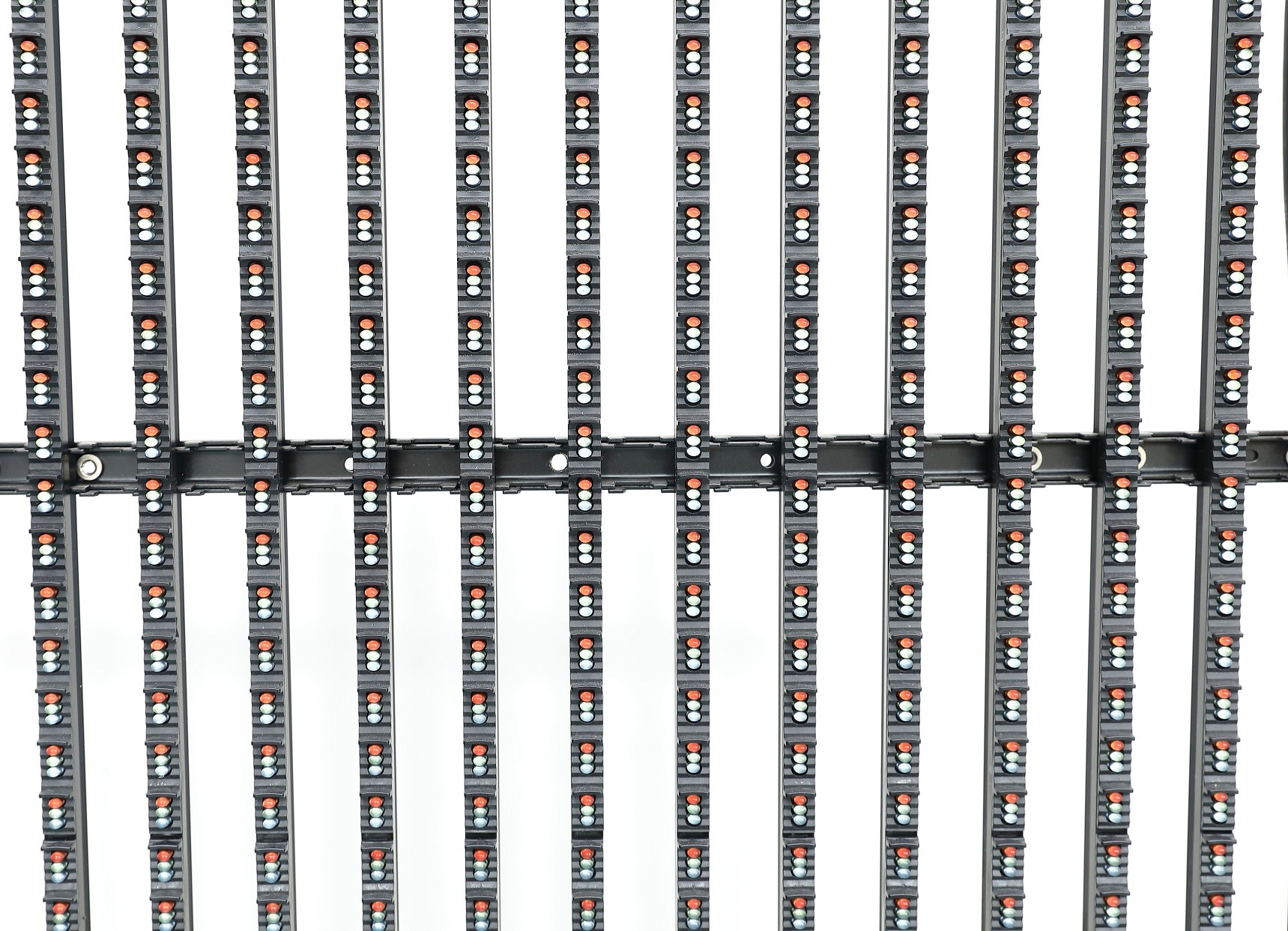

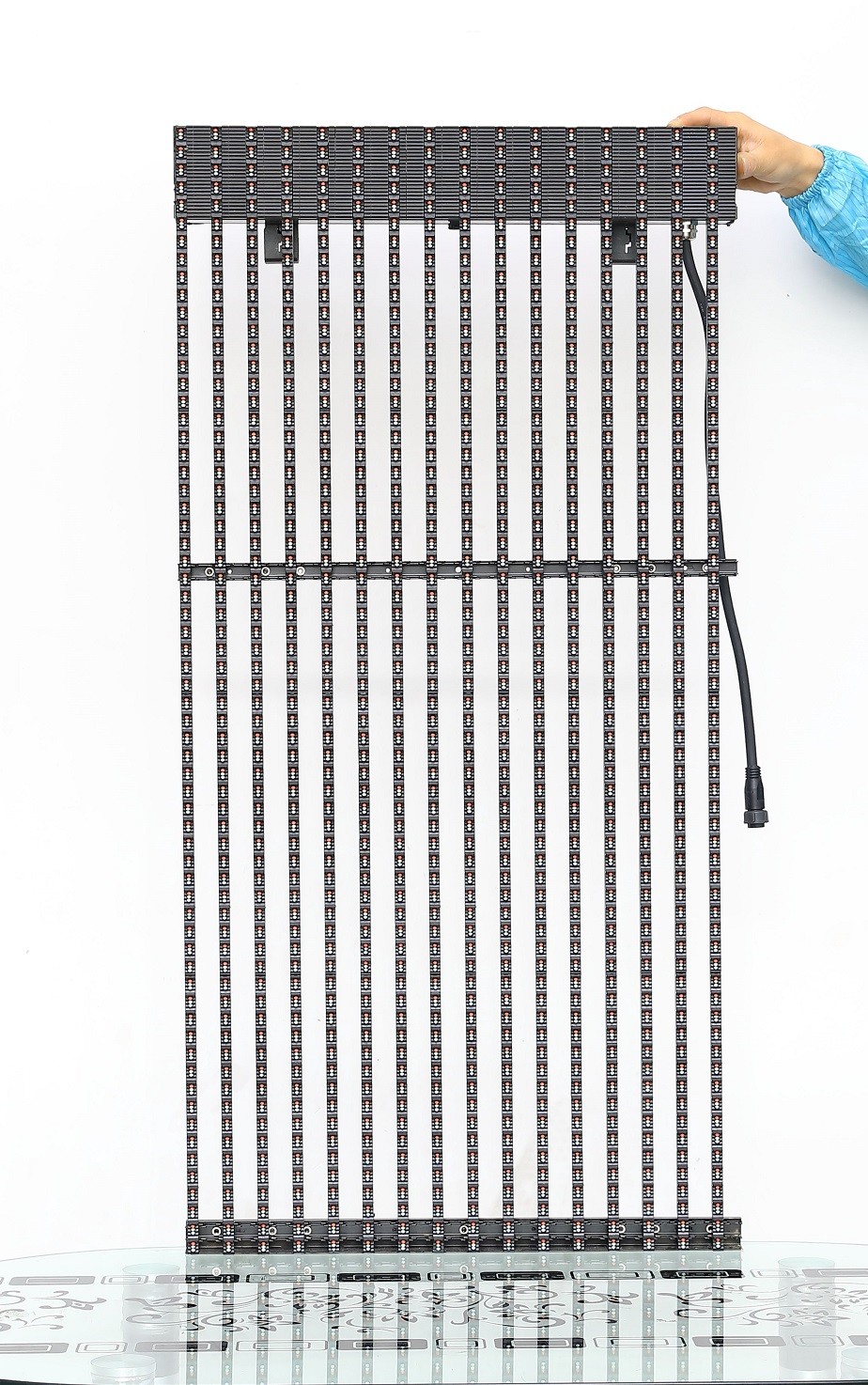

8000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B 0
8000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B 1
8000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B 28000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B 38000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B 48000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B 58000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B 68000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B 7
8000nits P15 LED Mesh Curtain Display Waterproof IP67 1R1G1B 8
LED Mesh Curtain Display

Waterproof, IP65/67
Lighter , no burden on the building
Easy installation, front & back maintenance
Lower power consumption and operational cost savings
Good transmittance, doesn't affect the building lighting
It can be installed in any building, including the inside and outside of the glass curtain wall, while maintaining the indoor lighting without affecting the bearing capacity of the building.
