P6.67 stadium perimeter led display / led sports signs / football stadium led display

Place of Origin	Shen Zhen China
Nazwa handlowa	AVOE LED
Orzecznictwo	CE RoHS
Model Number	AE-P6.67OPRGB
Minimum Order Quantity	5sqm
Cena	negotiable
Packaging Details	Flight case, Plywood case
Delivery Time	10 working days after receiving the payment
Payment Terms	T/T, L/C, Western Union, MoneyGram
Supply Ability	10K sqm per month

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

Szczegóły Produktu

Name	Sport Perimeter LED Display	Pixel pitch (mm)	6.67
Pixel Matrix Per Sq.m	22498	Pixel Configuration	SMD2727
Module Dimension	320*320mm	Cabinet Dimension	960x960mm
Display function	Video,text,Animation,photo	Usage	Outdoor,outdoor waterproof IP65,advertising
Tube chip color	Full Color,energy-saving	Screen dimension	Customized,1280*960mm,320mm x 320mm
Brightness	6500cd/sqm	Warranty	5 Years
Application	Outdoor Advertising Led,soccer field advertisement screen,concert,Outdoor	Life span	≥100000 hours
Product name	Led Video Display Panel,Stadium Perimeter Sports Ground Waterproof P10 Led Display,Football Stadium Perimeter LED Screen Display	Led chip	Epistar
Color	Full-color	Cabinet size	960960 mm / 1280960 mm
Design	soft mask to protect the player	Power supply	Meanwell,AC110V/220V
Podkreślić	perimeter led screen , led perimeter advertising boards

Zostaw wiadomość

opis produktu

P6.67 stadium perimeter led display / led sports signs / football stadium led display

Features
1. High Contrast: 4000: 1, which is a very high level to ensure a vivid image of our LED display screen system...
2. First-class LED chip: Supplied by COTCO/CREE/AXT/SILAN/TAI WAN LED lamps to ensure the long lift-time and high brightness of our LED display screen system
3. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness: 9000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

Specification

Indoor / Outdoor PM	IPM6.67	IPM10	OPM8	OPM10	OPM16
Pixel Pitch(mm)	6.67	10	8	10	16
Pixel Matrix Per Sq.m	22498	10000	15625	10000	3906
Pixel Configuration	SMD2727	SMD3528	SMD3535	SMD3535	SMD3535
Brightness (nits)	6000	1800	6800	7500	8000
Scan	1/6	1/4	1/3	1/2	1/1
Module Dimension	320*320mm	320x160mm/1.05x0.52ft	320x160mm/1.05x0.52ft	320x160mm/1.05x0.52ft	256x256mm/0.84x0.84ft
Cabinet Dimension	960x960mm	1280x960mm/4.2x3.15ft	1280x960mm/4.2x3.15ft	1280x960mm/4.2x3.15ft	1024x1024mm/3.36x3.36ft
Cabinet Resolution	144x144	128x96	160x120	128x96	64x64
Cabinet Weight	40kg / 88Ib (Iron)	44kg / 97Ib (Iron)	49kg / 108Ib (Iron)	48kg / 105Ib (Iron)	46kg / 101Ib (Iron)
Power Con. (Max / Avg)	550 / 100 w/sq.m	500 / 90 w/sq.m	680 / 120 w/sq.m	650 / 110 w/sq.m	690 / 130 w/sq.m
IP Rate	IP43		IP65
Service Access	Front / Rear		Front / Rear
Refresh Rate (HZ)	2880		≥2880
Grey Scale (bit)	14bit		16bit
Viewing Angle (H/V)	140 / 140		140 / 140
Input Voltage (AC)	110V / 240V		110V / 240V

Detailed:

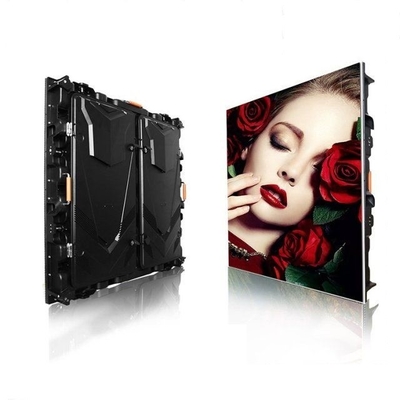

Solid, Compact, Strong Cabinet Design For All Weather and Prevent for Any External Attacks

P6.67 stadium perimeter led display / led sports signs / football stadium led display 0

P6.67 stadium perimeter led display / led sports signs / football stadium led display 1

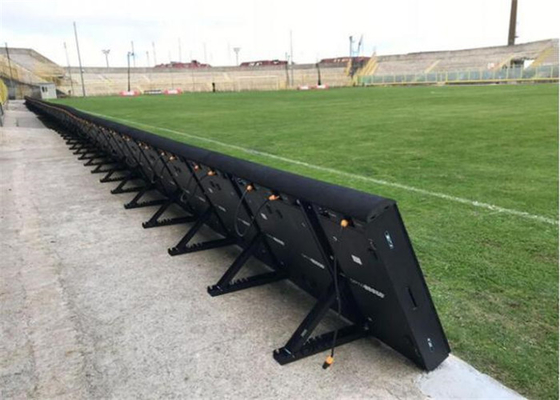

Rotating Design with Wheels for Emergency Exit

PM series with rotating base and wheels for emergency exit for perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most football associations. P6.67 stadium perimeter led display / led sports signs / football stadium led display 2

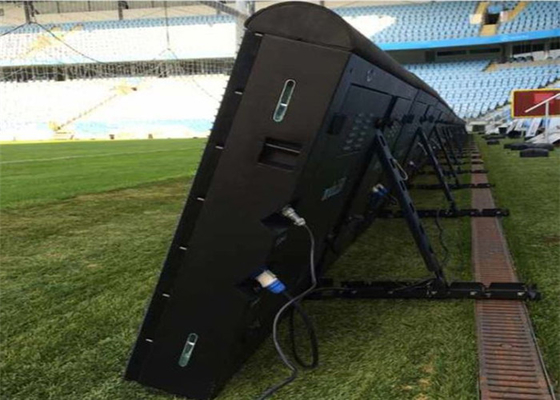

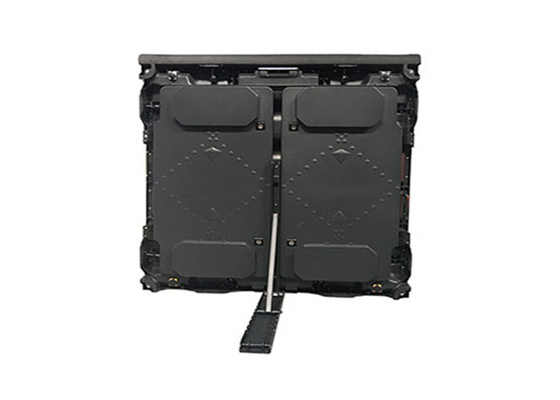

Adjustable Bracket

Cabinet adjustable angle between 60°and 90°

P6.67 stadium perimeter led display / led sports signs / football stadium led display 3

Protective Top Cover and Rubber Module Mask

Protective top cover protect players from injury. Rubber module mask protect LED from ball and players striking,
besides protect players against further injury.

P6.67 stadium perimeter led display / led sports signs / football stadium led display 4

Independent RCD Protection

RCDs protect the system against short circuits, overcurrent and leakage currents which makes the system absolutely safe to operate.

P6.67 stadium perimeter led display / led sports signs / football stadium led display 5

Professional Software PM Player

PM Player and software makes it easy to control your screen,
manage your media and show linear content on your perimeter LED display, which is friendly for advertising application.

P6.67 stadium perimeter led display / led sports signs / football stadium led display 6

4H Makes Perfect Visual Effect

· High Brightness: ≥7000nits	· High Grey Scale: 65536 levels
· High Refresh Rate: 2880Hz	· High Contrast: 5000:1

SMD Performance and View Angle

Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing

Energy Saving Stadium Perimeter
LED Display

1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency

P6.67 stadium perimeter led display / led sports signs / football stadium led display 10

Backup for Recycle

P6.67 stadium perimeter led display / led sports signs / football stadium led display 11
