P3.9-7.8 AVOE transparent window display Special Emitting Angle 5000cd/sqm for shop window

Place of Origin Shen Zhen China
Nazwa handlowa AVOE LED
Orzecznictwo CE RoHS
Model Number P3.91-7.82
Minimum Order Quantity 5sqm
Cena negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Name Transparent LED Display Pixel pitch 3.91-7.81
Display function Video,Animation,Graphics,Animation/ graphics/ video,Video/Image Screen dimension Customized Size
Usage Indoor,Outdoor Brightness ≥5000nits
Warranty 3 Years Application Live Events Led Display,advertising,indoor and outdoor building/stage led display,Outdoor Advertising Led
Life span 100000 Hours Product name Outdoor led display advertising,Sunrise transparent bar type led display,P3.91-7.81 Transparent LED Display,Led Video Display screen
Color Color RGB curtain display Cabinet size 500x1000mm or 1000x1000mm
Viewing angle 140 degree /140 degree Refresh rate 1920Hz,3840Hz
Podkreślić

glass wall led display

,

clear led screen

Zostaw wiadomość
opis produktu

P3.9-7.8 AVOE transparent window display Special Emitting Angle 5000cd/sqm for shop window



Transparent LED Display is no doubt the best choice as windows ads player, without sacrifice ventilate and natural light with the 48%~90% transparency, you won’t miss any view from it. Transparent LED Display is ultra slim and thin, easy for installation and transportation, time and labor efficient. The quick lock system of Transparent LED Display secured quick and fast connection. Integrated power and data cables save lots of trouble when installing Transparent LED Display and make it looks tidy and elegant. Transparent LED Display can only be installed indoors, but also view-able from outside of the building, high brightness and high definition making a stunning effect of your ads to passers.

Transparent LED Display possesses transparent and modern product aesthetics which can benefit to installation over windows, glass facade and for creative event production as well. It is lightweight and ultra-thin, making deployment a breeze. High transparency guarantees natural view behind the screen while delivering clear and crisp contents view-able for both day and night.



Parameters



Model P3.91 P3.91 P7.81 P7.81 P10.4
Pixel pitch 3.91-7.81 3.91-7.82 7.81 7.81-15.625 10.4
Lamp Indoor SMD2121 Outdoor SMD1921 Outdoor SMD2525 Outdoor SMD2525 Outdoor SMD2525
Pixel density 32768 32768 16384 8192 9230
Module size 500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size available
Cabinet material Acryic Aluminum Steel
weight 15KG/㎡ 15KG/㎡ 14KG/㎡ 14KG/㎡ 14KG/㎡
Transparency 65% 65% 70% 75% 80%
Brightness ≥1000nit ≥4500nit ≥4500nit ≥4500nit ≥4000nit
Refresh rate ≥1920HZ
Scan mode 1/165 1/85 1/25 1/25 1/35
Max power consumption 400W/㎡ 600W/㎡ 600W/㎡ 550W/㎡ 550W/㎡
Average power 120W/㎡ 180W/㎡ 180W/㎡ 180W/㎡ 180W/㎡
PCB FR-4 four layers board,2.0mm thickness
Driver IC MBI5124,Hight Refresh Rate
Installation Hanging or Stacking
Brightness level 256 Level



Features



1. High Transparency and Concise:68-80% transparency rate among different pitches; hidden cable design looks clean and concise; Variable brightness options for day and night enviroment.


2. Slim, Light Weight and Quiet:35mm-45mm thickness;14 kg/m²; Available to attach onto glass wall directly.



3. Special Emitting Angle:Lighting from tube side emitting; brightness and color are penetrated via the glass effect; Embedded-In SMD technology, avoid to be knocked off during transportation and installation.




4. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.

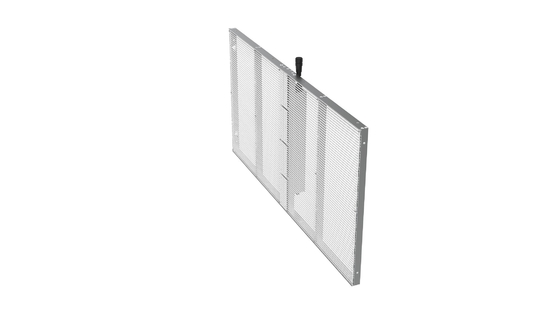

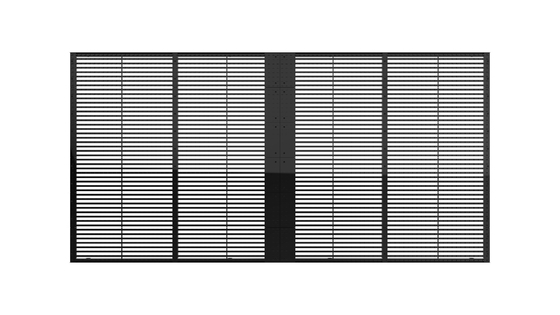

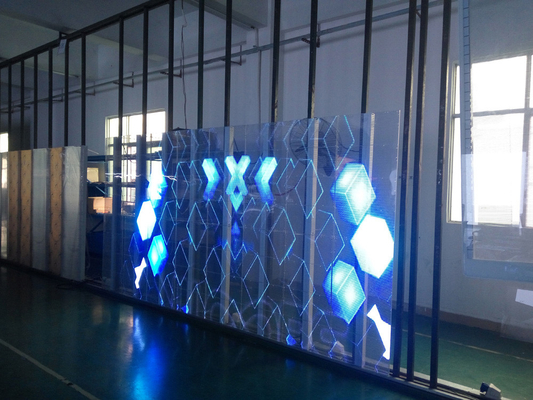

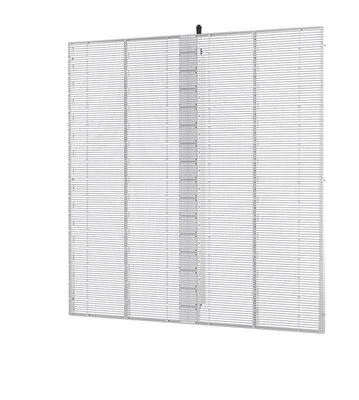

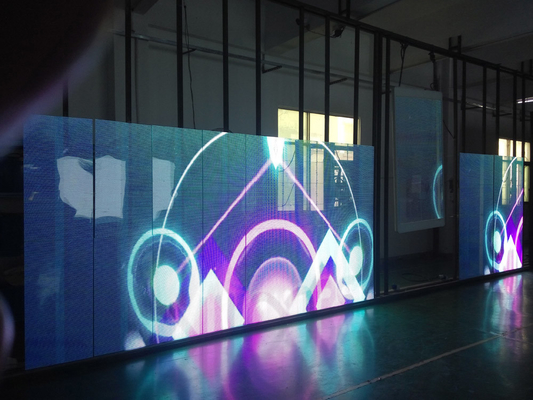

Detailed Pictures



P3.9-7.8 AVOE transparent window display Special Emitting Angle 5000cd/sqm for shop window 0P3.9-7.8 AVOE transparent window display Special Emitting Angle 5000cd/sqm for shop window 1

P3.9-7.8 AVOE transparent window display Special Emitting Angle 5000cd/sqm for shop window 2P3.9-7.8 AVOE transparent window display Special Emitting Angle 5000cd/sqm for shop window 3



P3.9-7.8 AVOE transparent window display Special Emitting Angle 5000cd/sqm for shop window 4

P3.9-7.8 AVOE transparent window display Special Emitting Angle 5000cd/sqm for shop window 5

P3.9-7.8 AVOE transparent window display Special Emitting Angle 5000cd/sqm for shop window 6



Application



Transparent Glass Curtain Wall LED Display for building glass wall, Auto 4S shop,
high-end clothing stores, retail windows, stage rental, et
