Professional P20mm Led Display , Roadside Led Display Fast & Flexible Installation

Place of Origin Shen zhen China
Nazwa handlowa AVOE LED
Orzecznictwo CE RoHS
Model Number AE-P20OFRGB
Minimum Order Quantity 5sqm
Cena negotiable
Packaging Details Flight case, Plywood case.
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 10K sqm per month

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Name Fixed Full Color LED Display Pixel Pitch(mm) 20mm
Pixel Density(pixels/㎡) 2500 Pixel Configuration DIP
Brightness(nits) 7500 Grey Level(bit) 12/14/16
Podkreślić

waterproof led display

,

outdoor smd led screen

Zostaw wiadomość
opis produktu

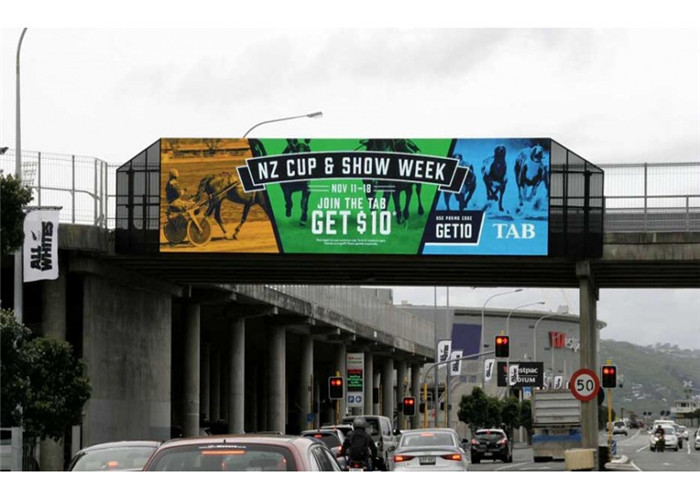

Professional P20mm Led Display , Roadside Led Display Fast & Flexible Installation ​



Features:

● RGB deep grey scale processing, rich color and HD image effect.



● Strong cabinet with reinforcing rib, tensile and quakeproof, with dissipation holes, lifespan more than 10 years.



● Energy saving design, can reduce 25% of consumption, it saves cost for customer, also friendly to the environment.



● Precision, Fast& flexible installation type, can be used in any installation conditions.



● High intensity& anti-aging material, protection level as high as IP65, can resist any bad environment.



● Support dot by dot correction, to make sure the consistency of color and brightness for one screen.



● High quality material, mature craftsmanship, large-scale manufacture and reliable quality.



● Professional navigation connector, keep the safety of whole screen.



Aplication:

Supermarkets, home, office, school, warehouse, shopping malls , hospitals ,production line , metro stations etc.





Parameters

Item Value
Pixel Pitch(mm) 20
Pixel Density(pixels/㎡) 2500
Pixel Configuration DIP
Brightness(nits) 7500
Grey Level(bit) 12/14/16
Refresh Rate(Hz) 1920/2880/3840
Panel Size(mm) 1440(W)×960(H)×130(D)
Panel Size(inch) 56.7(W)×37.8(H)×5.1(D)
Panel Resolution(pixels) 72×48
Panel Material Iron/Aluminum
Weight(kg/㎡) ≤55/45
Module Size(mm) 240(W)×240(H)
Module Size(inch) 9.45(W)×9.45(H)
Module Resolution(pixels) 12×12
Protection Grade(Front/Rear) IP65/IP54
Serviceability Front/Rear
Voltage(V) AC 100~AC 240
Avg.Power Consumption(W/㎡) 110(AC)
Max.Power Consumption(W/㎡) 440(AC)
Operating Temp/Humidity(℃/%RH) -20~50/10~90
Storage Temp/Humidity(℃/%RH) -40~60/0~90
Lifetime(Normal Temp)(hours) 100000
Compliant Standard CE FCC RoHS
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to AVOE.




Installation Procedure

Professional P20mm Led Display , Roadside Led Display Fast & Flexible Installation 0



Professional P20mm Led Display , Roadside Led Display Fast & Flexible Installation 1Professional P20mm Led Display , Roadside Led Display Fast & Flexible Installation 2Professional P20mm Led Display , Roadside Led Display Fast & Flexible Installation 3



Our serrvices

1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation


2. After sale service
Quick response
Prompt question resolving
Service tracing



3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.



4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.



5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
